AVK GATE VALVE, FLANGED, PN10/16
EN 558-2 S.15/DIN F5, DN40-500
Contact
AVK Saudi Valves
Jeddah Industrial City, Phase 4, Street no 45 P.O. Box 10830, 21443 Jeddah 24/7 Leakage Repair Service +966 55 909 9395
Flanged gate valve EN 558-2 S.15/DIN F5. For drinking water and neutral liquids to max. 70°C
AVK gate valves are designed with built-in safety in every detail. The wedge is fully vulcanized with AVK’s own drinking water approved EPDM rubber compound. It features an outstanding durability due to the ability of the rubber to regain its original shape, the double bonding vulcanization process and the sturdy wedge design. The triple safety stem sealing system, the high strength stem and the thorough corrosion protection safeguard the unmatched reliability.
| Variant 02/60-0035 | |
|---|---|
| Connection: | Flanged |
| Material: | Ductile iron |
| DN: | DN40 - DN500 |
| PN: | PN 16 |
| Closing direction: | Clockwise to Close |
Features
- Fixed, integral wedge nut prevents vibration and ensures durability
- Wedge fully vulcanized with drinking water approved EPDM rubber and equipped with wedge shoes to provide smooth operation
- Large conical stem hole in the wedge prevents stagnant water
- Wedge and body guide rails ensure stable operation
- Stainless steel stem with wedge stop and rolled threads for high strength
- Full circle thrust collar provides fixation of the stem and low free running torques
- Triple safety stem sealing with an NBR wiper ring, a polyamide bearing with four NBR O-rings, and an EPDM rubber manchette
- Round EPDM bonnet gasket fixed in a recess
- Countersunk and sealed stainless steel bonnet bolts encircled by the bonnet gasket
- Full bore
- Low operating torque
- Fusion bonded epoxy coating to DIN 30677-2
Downloads
Reference nos. and dimensions:
| AVK ref. no. | DN mm |
Flange drilling |
L mm |
H mm |
H3 mm |
W mm |
F mm |
F1 mm |
F2 mm |
Theoretical weight/kg |
Notes |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 02-040-60-014649 | 40 | PN10/16 | 240 | 194 | 269 | 150 | 14 | 18 | 29 | 8.0 | |
| 02-050-60-014649 | 50 | PN10/16 | 250 | 209 | 292 | 165 | 14 | 18 | 29 | 9.3 | |
| 02-065-60-014649 | 65 | PN10/16 | 270 | 243 | 336 | 185 | 17 | 23 | 34 | 12 | |
| 02-100-60-014649 | 100 | PN10/16 | 300 | 306 | 416 | 220 | 19 | 23 | 34 | 19 | |
| 02-150-60-014649 | 150 | PN10/16 | 350 | 403 | 543 | 285 | 19 | 22 | 34 | 33 | |
| 02-200-60-014649 | 200 | PN16 | 400 | 490 | 660 | 340 | 24 | 28 | 34 | 54 | |
| 02-350-60-016 | 350 | PN16 | 550 | 947 | 1207 | 520 | 32 | 40 | 55 | 278 | Valve having an increased bore (400 mm) |
| 02-400-60-016 | 400 | PN16 | 600 | 959 | 1249 | 575 | 32 | 40 | 55 | 272 | |
| 02-450-60-016 | 450 | PN16 | 650 | 958 | 1278 | 640 | 32 | 40 | 55 | 360 | Valve having a reduced bore (400 mm) |
| 02-500-60-016 | 500 | PN16 | 700 | 958 | 1316 | 715 | 32 | 40 | 55 | 379 | Valve having a reduced bore (400 mm) |

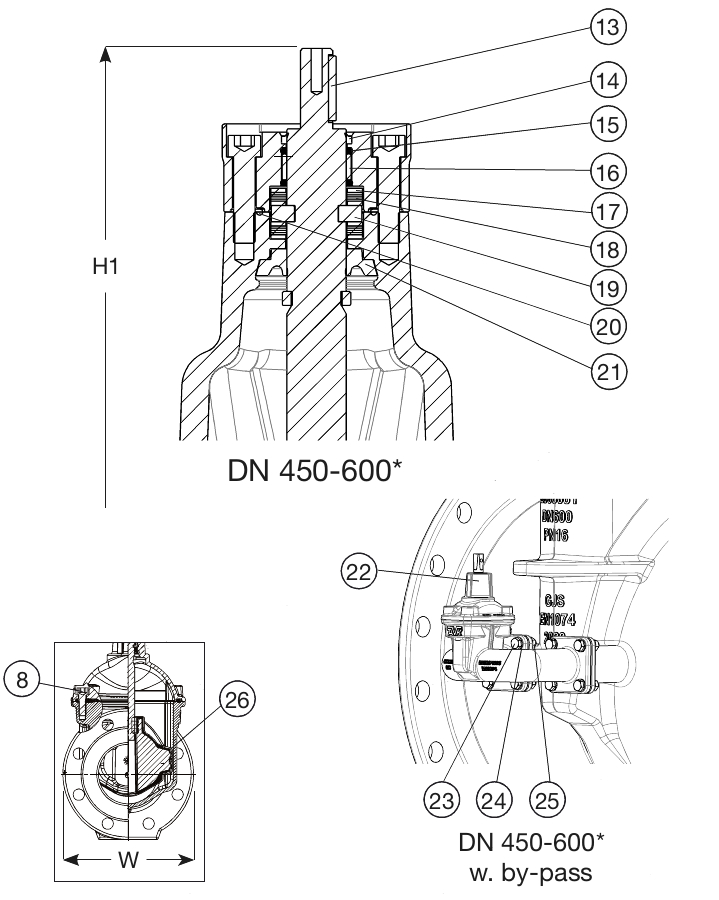

Components
| 1. | Stem | Stainless steel 1.4104 (430F) |
| 2. | Wiper ring | NBR rubber |
| 3. | O-ring | NBR rubber |
| 4. | Bearing | Polyamide |
| 5. | Bonnet | Ductile iron GJS-500-7 (GGG-50) |
| 6. | Thrust collar | Brass DZR CW602N |
| 7. | Manchette | EPDM rubber |
| 8. | Bonnet bolt | Stainless steel A2, sealed with hot melt |
| 9. | Bonnet gasket | EPDM rubber |
| 10. | Wedge nut | Brass DZR CW626N |
| 11. | Wedge | Ductile iron, EPDM encapsulated |
| 12. | Body | Ductile iron GJS-500-7 (GGG-50) |
| 13. | Wedge shoe | Polyamide |
Test/Approvals
- Hydraulic test according to EN 1074-1 and 2 / EN 12266
- Seat: 1.1 x PN (in bar), Body: 1.5 x PN (in bar). Operation torque test
- Belgaqua approved
- Approved according to DIN-DVGW Certificate NW-6202BN0109
- Approved according to KIWA Certificate K 6320
- Approved according to SVGW Certificate No. 0301-4606
Standards
- Designed according to EN 1074 part 1 & 2, Designed according to EN 1171
- Face to face according to EN 558 Table 2 Basic Series 15
- Flange drilling to EN1092-2 (ISO 7005-2), PN10/16
